Variable according to Monotolva (standard 5300mm).
Variable according to length
Structure of duct
Composed of folded sheet, in its upper part contains a removable cover puffed for the cleaning and inspection of the Conveyor Belt. Its anchorage to the flag is completely abullonado as well and can be moved along the entire duct.
Built in 1/8 “reinforced sheet. It owns a roll of 100mm of diameter and is by which the band is tensioned. Contains Doors to empty unwanted content.
Built in 1/8 “reinforced sheet. It has a roll of 100mm diameter rubberized and chevronado for the traction of the band.
Approximately 4000 mm high (according to adaptation to monotolva).
Banda de 200mm de ancho, con tacos de 35mm de alto.
Loading and Unloading

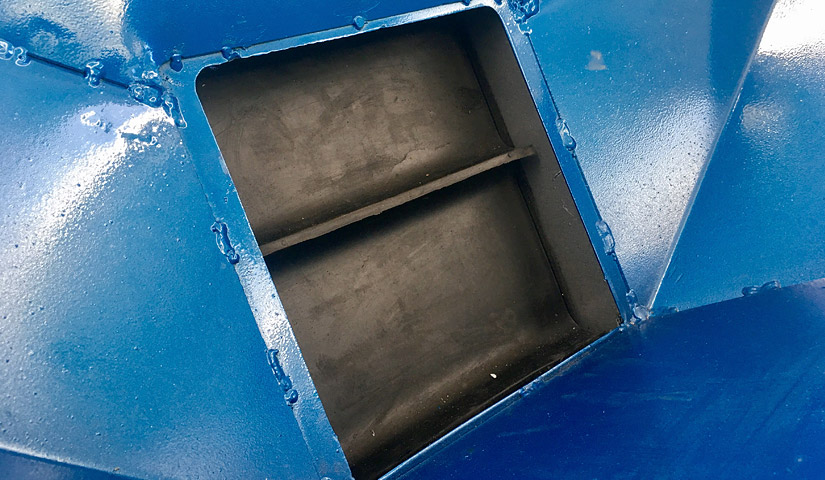

Batea of reception, outlet nozzle with telescopic tube.
