Curador CR

Curador CR

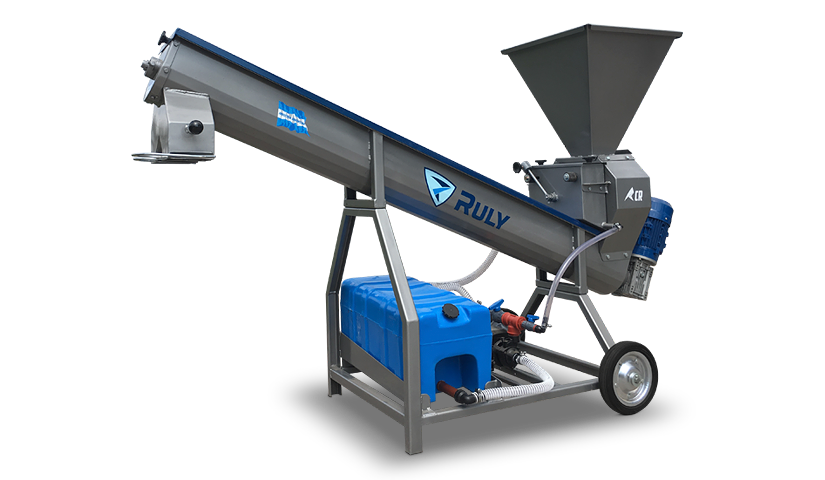

The model CR Conservator has a capacity of 4500 kg / hour and features 2 nozzles pocketed on the front. This curator lets you work with exact dosages and working with a system which can be spoons interchangeable. Its internal chimango with paddles at the ends generate a uniform mixture all the way, painting each cereal grain in optimal quality.

Category:
Additional Information
Capacity

4.500 Kg/hour

Function

It allows the homogeneous curing of any type of seeds.

Lenght

2100 mm long and 1000 mm wide and 1400mm high

Weight

90 Kg. Approx.

Chassis

Made of reinforced angle 1/8 “with wheels for transportation.

Dossing System

.A swing through changeable spoons (with 3 sets of different sizes).

Storage Liquid

plastic tank 300 Mm. wide by 305 mm. high by 620 mm. long with a capacity of 50 liters.

Drive

single phase electric motor 1.5 Hp. 1500 RPM. Gearbox ratio 1:30. Centrifugal pump made entirely of brass.

Loading and Unloading

Reception hopper with flow regulator cap and spout with double outlet for pocketing.
