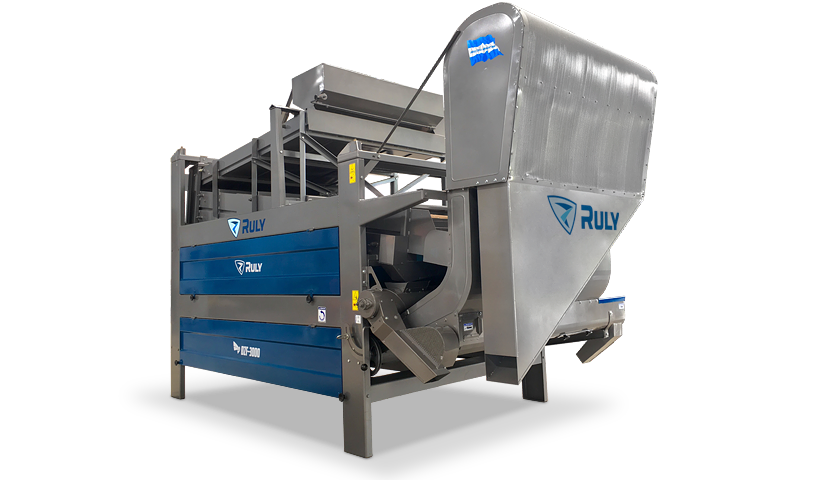

Modelo DZF3000

Modelo DZF3000

The Sorter model DZF3000, is especially used in fixed locations, mostly in warehouses gathering and / or seed treatment sites. Being a machine fixed the only drive that uses are for zarandon and ventilation. Makes 20 T / H Approx. which makes a quick sorting to work in bulk and filled hoppers.

Category:
Additional Information
Capacity

20 tons/hour

Function

Cleaning the material to be sorted.

Lenght

4000 mm long and 1880 mm wide and 2600mm high .

Weight

Varies depending on length.

Structure

Built completely folded sheet of 3/16 “thick with possibility of abullonar on the floor if you want. It has removable legs 400 and 1000 mm in height to better run the grain if the customer wishes.

(Español) ZarandónZarandon

Constructed completely folded sheet 1.2mm thick providing strength and durability. Composed of a 1500 x 2000mm drawer, which contains 1 (one) plane and another drawer zaranda 1500 x 3000mm, which contains 2 (two) planes of equal shakers. This zarandon works with a system of shaking circular allowing the seed encintrar faster the hole in the sieve.

Cleaning

Use spheres rubber 35mm diameter for cleaning the screens and that they do not get stuck.

Drive

electric motor of 2 HP for controlling the zarandon and 5.5 HP engine to send the fan

Ventilation

Composed of 12 (twelve) internal paddles balanced by a variable speed drive and a screen to regulate the flow of air. Is 1500mm wide and 600 mm in diameter, is constituted with folded sheet of 1.2 and 1.6 mm thick. The tacho fan is divided into 2 to have better air circulation.

Food

This sorting does not possess any type of accessory to feed, leave freely available to the customer. Has a receiving hopper at the top.

Download

All heavy impurities, grain boys and party, as light impurities are dismissed by the side of the machine, while on the other side clean grain classified be obtained. All nozzles are falling by gravity.
